Bastion+ with Dedicated Portal

Overview of a Bastion+ WebSocket setup providing a protocol break and access to a work environment.

Prerequisites

Retrieve the following Ansible roles:

reemo-infra
reemo-provision
reemo-relayws

Have a license key.

Architecture

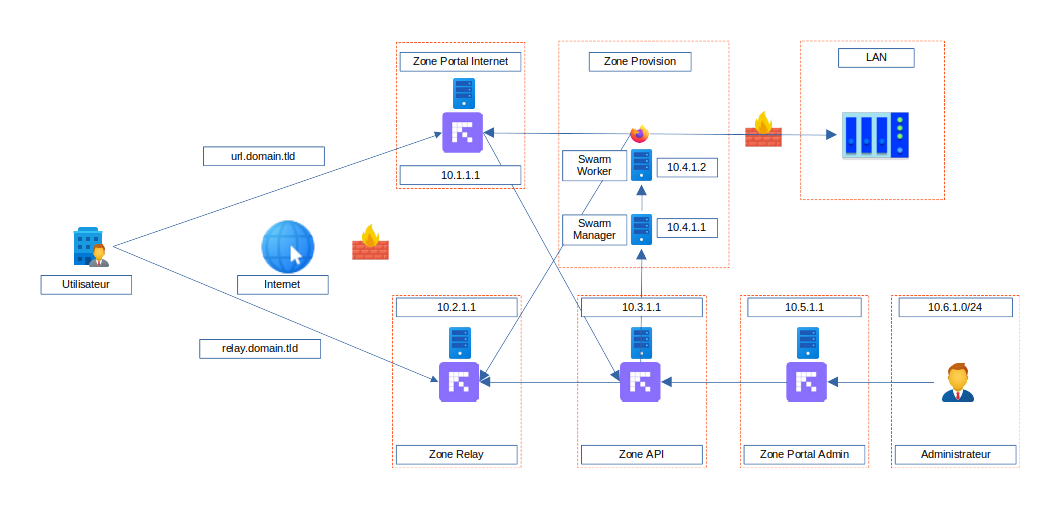

Overview of the infrastructure for a Bastion+ installation with a dedicated Portal

Flow Matrix

DESCRIPTION	TRANSPORT	SOURCE IP	SOURCE PORT	DESTINATION IP	DESTINATION PORT	SERVICES
Portal -> API	TCP	10.1.1.1	1024:65535	10.3.1.1	443	HTTPS
API -> PROVISION	TCP	10.3.1.1	1024:65535	10.4.1.1	8443	HTTPS
API -> RELAY	TCP	10.3.1.1	1024:65535	10.2.1.1	443,8443	HTTPS
Portal Admin -> API	TCP	10.5.1.1	1024:65535	10.3.1.1	443	HTTPS
Admin -> Portal Admin	TCP	10.6.1.0/24	1024:65535	10.5.1.1	443	HTTPS
PROVISION -> Internet Portal	TCP	10.4.1.0/24	1024:65535	10.1.1.1	8443	HTTPS
PROVISION -> RELAY	TCP	10.4.1.0/24	1024:65535	10.2.1.1	443	HTTPS
INTERNET -> RELAY	TCP	WAN	1024:65535	10.2.1.1	443	HTTPS
INTERNET -> INFRA	TCP	WAN	1024:65535	10.1.1.1	443	HTTPS

Initialization

On all three environments, run the following command to initialize Docker Swarm:

docker swarm init

In multi-node environments, join nodes with the corresponding docker swarm join commands.

Infra Environment: Swarm Manager Provision Environment: Swarm Manager + Worker Relay Environment: Swarm Manager

Ansible Inventory File

all:
vars:
    ansible_ssh_common_args: '-o StrictHostKeyChecking=no -o UserKnownHostsFile=/dev/null'
    INIT_TYPE: "bastion"
    DOCKER_VERSION: preprod
    API_LICENSE: "ewogICAg ... Uw5NXhGVDF0NFU2TkxOdjQvZU53PT0iCiAgICC9Cn0="
    HMACSECRET: "Taikohshugh8tahb2m"
portal_manager:
    children:
        portaluser_manager:
            vars:
                PORTAL_URL: "url.domain.tld"
                PORTAL_TYPE: "user"
                TRAEFIK_SSL_CERTS:
                    - cert_file: "/localpath/to/cert_domain.tld.crt"
                      key_file: "/localpath/to/key_domain.tld.key"
                API_IP:
                    - ip: "10.3.1.1"
            hosts:
                portaluser1:
                    ansible_host: "10.1.1.1"
        portaladmin_manager:
            vars:
                PORTAL_URL: "admin.domain.local"
                PORTAL_TYPE: "admin"
                TRAEFIK_SSL_CERTS:
                    - cert_file: "/localpath/to/cert_domain.local.crt"
                      key_file: "/localpath/to/key_domain.local.key"
                API_IP:
                    - ip: "10.3.1.1"
            hosts:
                portaladmin1:
                    ansible_host: "10.5.1.1"

api_manager:
    vars:
        RELAYS_URL: "relay.domain.tld"
        PROVISION_SIGNAL_IP:
            - ip: "10.1.1.1"
        PROVISION_IP:
            - ip: "10.4.1.1"
        RELAYS_IP:
            - ip: "10.2.1.1"
    hosts:
        api1:
            ansible_host: "10.3.1.1"

provision:
    vars:
        PROVISION_SWARM_ADVERTISE_ADDR: "10.4.1.1"
    children:
        provision_manager:
            hosts:
                provision_manager1:
                    ansible_host: "10.4.1.1"
        provision_worker:
            hosts:
                provision_worker1:
                    ansible_host: "10.4.1.2"

relayws_manager:
    vars:
        TRAEFIK_SSL_CERTS:
            - cert_file: "/localpath/to/cert_domain.tld.crt"
              key_file: "/localpath/to/key_domain.tld.key"
    hosts:
        relayws_manager1:
            ansible_host: "10.2.1.1"

Installation

Prerequisites

Have the following Ansible roles:

• reemo-infra

• reemo-provision

• reemo-relayws

Have the following playbooks:

reemo-infra.yml

- name: Reemo Infra Server Installation
  hosts: infra_manager,portal_manager,api_manager
  gather_facts: yes

  roles:
      - role: reemo-infra
        become: yes

reemo-provision.yml

- name: Deploy Reemo Provision environment in swarm cluster
  hosts: provision,provision_manager
  gather_facts: yes

  roles:
      - role: reemo-provision
        become: yes

reemo-relayws.yml

- name: Reemo Relay WebSocket Installation
  hosts: relayws_manager
  gather_facts: yes

  roles:
      - role: reemo-relayws
        become: yes

With Internet

If hosts have Internet access and you want to automate Docker installation and Swarm initialization, use:

ansible-playbook -i inventory.yml playbooks/reemo-infra.yml --limit api_manager --extra-vars "INIT_DB=true" --extra-vars "INSTALL_DOCKER=true"
ansible-playbook -i inventory.yml playbooks/reemo-infra.yml --limit portaladmin_manager --extra-vars "INSTALL_DOCKER=true"
ansible-playbook -i inventory.yml playbooks/reemo-infra.yml --limit portaluser_manager --extra-vars "INSTALL_DOCKER=true"
ansible-playbook -i inventory.yml playbooks/reemo-provision.yml --extra-vars "PROVISION_INSTALL_DOCKER=true"
ansible-playbook -i inventory.yml playbooks/reemo-relayws.yml --extra-vars "RELAYWS_INSTALL_DOCKER=true"

Without Internet

If there is no Internet access, install Docker on all hosts and initialize Docker Swarm before running the roles.

ansible-playbook -i inventory.yml playbooks/reemo-infra.yml --extra-vars "TARBALL_GENERATE=true" --extra-vars "TARBALL_PATH=/opt/reemo/images" --tags tarball_generate
ansible-playbook -i inventory.yml playbooks/reemo-infra.yml --limit api_manager --extra-vars "INIT_DB=true" --extra-vars "TARBALL_PATH=/opt/reemo/images" --extra-vars "LOAD_IMAGE=true"
ansible-playbook -i inventory.yml playbooks/reemo-infra.yml --limit portaladmin_manager --extra-vars "TARBALL_PATH=/opt/reemo/images" --extra-vars "LOAD_IMAGE=true"
ansible-playbook -i inventory.yml playbooks/reemo-infra.yml --limit portaluser_manager --extra-vars "TARBALL_PATH=/opt/reemo/images" --extra-vars "LOAD_IMAGE=true"
ansible-playbook -i inventory.yml playbooks/reemo-provision.yml
ansible-playbook -i inventory.yml playbooks/reemo-relayws.yml --extra-vars "TARBALL_PATH=/opt/reemo/images" --extra-vars "LOAD_IMAGE=true"
