User and Administrator Portal

The reemo-infra Ansible role lets you customize each portal using variables defined at the host level in the Inventory file. These variables apply individually to each portal instance.

Portal URLs

By default the Infra and Portal servers respond to all requests with a self-signed certificate.

To set a specific URL for the User Portal, use the PORTAL_URL variable:

all:
    vars:
        API_LICENSE: "ewogICAg ... Uw5NXhGVDF0NFU2TkxOdjQvZU53PT0iCiAgICC9Cn0="
        ...
    infra_manager:
        vars:
            PORTAL_URL: "url.domain.tld"
        hosts:
            infra_manager1:
                ansible_host: "10.0.0.1"
            infra_manager2:
                ansible_host: "10.0.0.2"
            infra_manager3:
                ansible_host: "10.0.0.3"

To set a specific URL for the Administrator Portal, use the PORTALADMIN_URL variable:

all:
    vars:
        API_LICENSE: "ewogICAg ... Uw5NXhGVDF0NFU2TkxOdjQvZU53PT0iCiAgICC9Cn0="
        ...
    infra_manager:
        vars:
            PORTAL_URL: "url.domain.tld"
            PORTALADMIN_URL: "urladmin.domain.ltd"
        hosts:
            infra_manager1:
                ansible_host: "10.0.0.1"
            infra_manager2:
                ansible_host: "10.0.0.2"
            infra_manager3:
                ansible_host: "10.0.0.3"

Important

It is recommended not to expose the Administrator Portal to an external network. This portal is intended to be used within your internal network.

Warning

With PORTALADMIN_URL enabled, administrators can no longer log in via the User Portal URL.

IP filtering

Enable IP filtering on both User and Administrator portals using the PORTAL_URL_RESTRICT_IP and PORTALADMIN_URL_RESTRICT_IP variables:

all:
    vars:
        API_LICENSE: "ewogICAg ... Uw5NXhGVDF0NFU2TkxOdjQvZU53PT0iCiAgICC9Cn0="
        ...
    infra_manager:
        vars:
            PORTAL_URL: "url.domain.tld"
            PORTAL_URL_RESTRICT_IP: "10.1.1.1,10.2.2.0/24"
            PORTALADMIN_URL: "urladmin.domain.ltd"
            PORTALADMIN_URL_RESTRICT_IP: "10.3.1.2,10.3.2.0/24"
        hosts:
            infra_manager1:
                ansible_host: "10.0.0.1"
            infra_manager2:
                ansible_host: "10.0.0.2"
            infra_manager3:
                ansible_host: "10.0.0.3"

Port management

By default the User Portal listens on port 443 with automatic redirection from port 80 to 443 over SSL.

For the Administrator Portal, use the PORTALADMIN_URL_PORT variable to specify a different port:

PORTALADMIN_URL_PORT: "8444"

Warning

The port must be different from 80, 443, and 8443 which are already used by other services.

Portal visual customization

You can apply a visual theme to a portal using the PORTAL_CUSTOMIZATION variable, choosing the theme name freely (e.g. BLUE, BLACK).

PORTAL_CUSTOMIZATION: "BLUE"

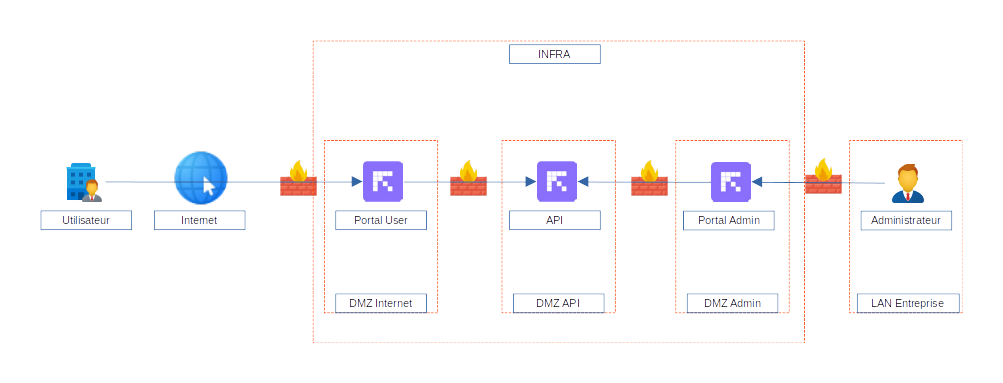

Physical separation of Portals

The reemo-infra Ansible role lets you physically separate the User Portal and the Administrator Portal.

Portal dedicated to instance administrators

To do this, create an inventory file by replacing the infra_manager group with two separate groups: api_manager and portal_manager.

Note

You must set a HMACSECRET in the variables, shared between the two portals and the API. This secret is used to sign requests from the portals to the API.

all:
    vars:
        API_LICENSE: "ewogICAg ... Uw5NXhGVDF0NFU2TkxOdjQvZU53PT0iCiAgICC9Cn0="
        HMACSECRET: "U6US67D70409RFAGQH5ZIWBFV8HX0UCZ"
portal_manager:
        children:
            portaluser_manager:
                vars:
                    PORTAL_URL: "url.domain.tld"
                    TRAEFIK_SSL_CERTS:
                        - cert_file: "/localpath/to/cert.crt"
                          key_file: "/localpath/to/key.key"
                    API_IP:
                        - ip: "10.3.1.1"
                        - ip: "10.3.1.2"
                        - ip: "10.3.1.3"
                hosts:
                    portaluser1:
                        ansible_host: "10.0.0.1"
                    portaluser2:
                        ansible_host: "10.0.0.2"
                    portaluser3:
                        ansible_host: "10.0.0.3"
            portaladmin_manager:
                vars:
                    PORTAL_URL: "admin.domain.tld"
                    TRAEFIK_SSL_CERTS:
                        - cert_file: "/localpath/to/cert.crt"
                          key_file: "/localpath/to/key.key"
                    API_IP:
                        - ip: "10.3.1.1"
                        - ip: "10.3.1.2"
                        - ip: "10.3.1.3"
                hosts:
                    portaladmin1:
                        ansible_host: "10.0.0.4"
                    portaladmin2:
                        ansible_host: "10.0.0.5"
                    portaladmin3:
                        ansible_host: "10.0.0.6"
api_manager:
        hosts:
            api1:
                ansible_host: "10.3.1.1"
            api2:
                ansible_host: "10.3.1.2"
            api3:
                ansible_host: "10.3.1.3"

Warning

Note that in the example above, the URLs use the PORTAL_URL variable, even for the administrator portal. Use this value when only one portal is declared on a specific server.

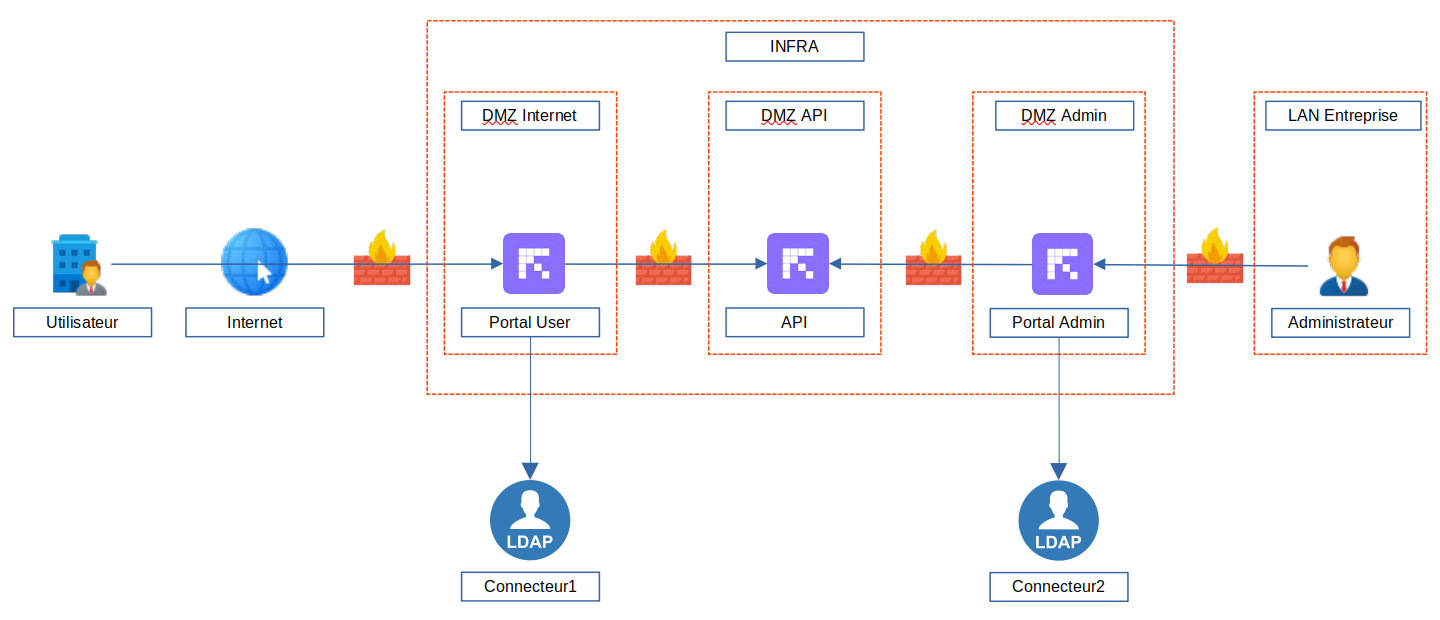

Portal dedicated to an SSO

In addition to physical separation you can also restrict SSO connectors per portal.

When creating a connector, you obtain a GUID. Enter this GUID in the inventory file, in the targeted portal section, using the PORTAL_LDAP_CONNECTORS variable for LDAP connectors or PORTAL_SAML_CONNECTORS for SAML connectors:

all:
    vars:
        API_LICENSE: "ewogICAg ... Uw5NXhGVDF0NFU2TkxOdjQvZU53PT0iCiAgICC9Cn0="
        HMACSECRET: "..."
portal_manager:
        children:
            portalsso_manager:
                vars:
                    PORTAL_URL: "urlldap.domain.tld"
                    TRAEFIK_SSL_CERTS:
                        - cert_file: "/localpath/to/cert.crt"
                          key_file: "/localpath/to/key.key"
                    PORTAL_LDAP_CONNECTORS:
                        - ldapid: "3182932d-9ee1-4c06-a4cf-c13c25f2ee93"
                    PORTAL_SAML_CONNECTORS:
                        - samlid: "692469bd-cb28-8332-aa65-9c95451c1a0e"
                hosts:
                    portalsso1:
                        ansible_host: "10.0.0.7"
                    portalsso2:
                        ansible_host: "10.0.0.8"
                    portalsso3:
                        ansible_host: "10.0.0.9"

To add multiple connectors to the same portal, add multiple ldapid or samlid lines:

all:
    vars:
        API_LICENSE: "ewogICAg ... Uw5NXhGVDF0NFU2TkxOdjQvZU53PT0iCiAgICC9Cn0="
        HMACSECRET: "..."
portal_manager:
        children:
            portalsso_manager:
                vars:
                    PORTAL_URL: "urlsso.domain.tld"
                    TRAEFIK_SSL_CERTS:
                        - cert_file: "/localpath/to/cert.crt"
                          key_file: "/localpath/to/key.key"
                    PORTAL_LDAP_CONNECTORS:
                        - ldapid: "3182932d-9ee1-4c06-a4cf-c13c25f2ee93"
                        - ldapid: "9c713681-b758-4179-b9a2-13618a7b804e"
                    PORTAL_SAML_CONNECTORS:
                        - samlid: "692469bd-cb28-8332-aa65-9c95451c1a0e"
                        - samlid: "4418cfb9-52c5-4d7c-88d1-7660e7809d23"
                hosts:
                    portalsso1:
                        ansible_host: "10.0.0.7"
                    portalsso2:
                        ansible_host: "10.0.0.8"
                    portalsso3:
                        ansible_host: "10.0.0.9"

For a dedicated administrator portal, use PORTALADMIN_SAML_CONNECTORS instead of PORTAL_SAML_CONNECTORS to restrict SAML connectors available specifically on that portal:

all:
    vars:
        API_LICENSE: "ewogICAg ... Uw5NXhGVDF0NFU2TkxOdjQvZU53PT0iCiAgICC9Cn0="
        HMACSECRET: "..."
portal_manager:
    children:
        portaluser_manager:
            vars:
                PORTAL_URL: "url.domain.tld"
                PORTAL_SAML_CONNECTORS:
                    - samlid: "692469bd-cb28-8332-aa65-9c95451c1a0e"
            hosts:
                portaluser1:
                    ansible_host: "10.0.0.1"
        portaladmin_manager:
            vars:
                PORTAL_URL: "admin.domain.tld"
                PORTALADMIN_SAML_CONNECTORS:
                    - samlid: "236cc1d9-a87d-4f16-becb-6cd6a0bba67f"
            hosts:
                portaladmin1:
                    ansible_host: "10.0.0.4"

Signal Server per Portal

To fully separate the portals, assign specific Signal servers to each portal using the PROVISION_SIGNAL_IP variable. These servers will be used by the containers launched from these portals:

portal_manager:
    vars:
        API_IP:
            - ip: "10.0.0.1"
    children:
        portal1_user:
            hosts:
                portal1_user1:
                    ansible_host: "10.0.0.2"
                    PORTAL_URL: "portal1.domain.tld"
                    PROVISION_SIGNAL_IP:
                        - ip: "10.0.0.2"
        portal2_user:
            hosts:
                portal2_user1:
                    ansible_host: "10.0.0.3"
                    PORTAL_URL: "portal2.domain.tld"
                    PROVISION_SIGNAL_IP:
                        - ip: "10.0.0.3"

Routing by container provider tags

The PORTAL_CONTAINER_PROVIDERS_TAGS variable restricts which container providers are available from a given portal. Only providers whose tags match this list will serve container sessions for that portal:

portal_manager:
    vars:
        API_IP:
            - ip: "10.0.0.1"
    children:
        portal1_user:
            hosts:
                portal1_user1:
                    ansible_host: "10.0.0.2"
                    PORTAL_URL: "portal1.domain.tld"
                    PORTAL_CONTAINER_PROVIDERS_TAGS:
                        - tag: "blue"
        portal2_user:
            hosts:
                portal2_user1:
                    ansible_host: "10.0.0.3"
                    PORTAL_URL: "portal2.domain.tld"
                    PORTAL_CONTAINER_PROVIDERS_TAGS:
                        - tag: "black"

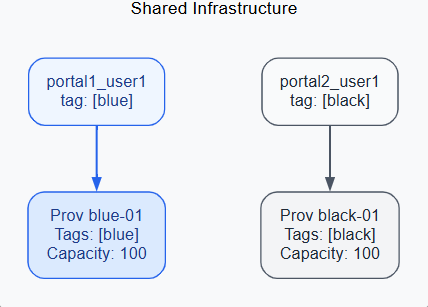

In this example, portal1_user1 only has access to providers tagged blue, and portal2_user1 only to providers tagged black.

Tag-based routing: each portal only deploys to providers whose tags match PORTAL_CONTAINER_PROVIDERS_TAGS.

Note

Container provider tags are assigned from verified_user Admin area > view_in_ar Containers & Workstations > dns Container Providers (Tags field, see Create a Direct Container Provider). Tag names are case-sensitive and must exactly match the values defined in PORTAL_CONTAINER_PROVIDERS_TAGS.

Filtering user roles on a Portal

You can restrict the type of users allowed to connect to a specific portal. Filtering is based on the user role.

• Instance Administrator

• Organization Administrator

• Organization Member

Main Portal

By default, all users can authenticate on a portal. With the PORTAL_TYPE variable, you can restrict access to a specific user type:

PORTAL_TYPE	default	user	admin	orgadmin	instadmin	orguser
Instance Administrator
Organization Administrator
Organization Member

Admin Portal

The secondary portal is configured by default for administrators. With the PORTALADMIN_TYPE variable, you can specify which types of administrators can log in:

PORTALADMIN_TYPE	default	orgadmin	instadmin
Instance Administrator
Organization Administrator
Organization Member

Example with a portal dedicated to users and the admin portal dedicated only to instance administrators:

all:
    vars:
        API_LICENSE: "ewogICAg ... Uw5NXhGVDF0NFU2TkxOdjQvZU53PT0iCiAgICC9Cn0="
        HMACSECRET: "..."
portal_manager:
    children:
        portaluser_manager:
            vars:
                PORTAL_URL: "url.domain.tld"
                PORTAL_TYPE: "user"
                TRAEFIK_SSL_CERTS:
                    - cert_file: "/localpath/to/cert.crt"
                        key_file: "/localpath/to/key.key"
            hosts:
                portaluser1:
                    ansible_host: "10.0.0.1"
                portaluser2:
                    ansible_host: "10.0.0.2"
                portaluser3:
                    ansible_host: "10.0.0.3"
        portaladmin_manager:
            vars:
                PORTAL_URL: "admin.domain.tld"
                PORTAL_TYPE: "instadmin"
                TRAEFIK_SSL_CERTS:
                    - cert_file: "/localpath/to/cert.crt"
                        key_file: "/localpath/to/key.key"
            hosts:
                portaladmin1:
                    ansible_host: "10.0.0.4"
                portaladmin2:
                    ansible_host: "10.0.0.5"
                portaladmin3:
                    ansible_host: "10.0.0.6"
api_manager:
    hosts:
        api1:
            ansible_host: "10.3.1.1"
        api2:
            ansible_host: "10.3.1.2"
        api3:
            ansible_host: "10.3.1.3"

Hiding the admin area

On a portal without dedicated physical separation, use the PORTAL_DISABLE_ADMIN_AREA variable to hide the admin area for users who log in through it:

portal_manager:
    vars:
        API_IP:
            - ip: "10.0.0.1"
    children:
        portal1_user:
            hosts:
                portal1_user1:
                    ansible_host: "10.0.0.2"
                    PORTAL_URL: "portal1.domain.tld"
                    PORTAL_DISABLE_ADMIN_AREA: true
        portal2_user:
            hosts:
                portal2_user1:
                    ansible_host: "10.0.0.3"
                    PORTAL_URL: "portal2.domain.tld"
                    PORTAL_DISABLE_ADMIN_AREA: false

In this example, administrators logging in via portal1.domain.tld cannot access the admin area, even if they have the required rights. They must use portal2.domain.tld to access it.

Note

PORTAL_DISABLE_ADMIN_AREA hides access to the interface, regardless of the user’s role. To restrict authentication itself based on role, use PORTAL_TYPE / PORTALADMIN_TYPE instead (see above).
