Verification and Troubleshooting¶

Post-deployment checks¶

Vault is unsealed and operational¶

docker exec $(docker ps --filter name=reemo_vault1. -q) bao status

Expected output:

Key                     Value
---                     -----
Sealed                  false

In Raft mode, also check all 3 replicas:

for n in 1 2 3; do
  echo "=== Replica $n ==="
  docker exec $(docker ps --filter name=reemo_vault${n}. -q) bao status
done

Raft cluster: list members¶

ROOT=$(jq -r .root_token playbooks/secrets/reemo/vault/init.json)
docker exec -e BAO_TOKEN=$ROOT $(docker ps --filter name=reemo_vault1. -q) bao operator raft list-peers

Expected output: the 3 replicas listed, with one leader and two followers.

CredentialAPI and its token¶

# Docker secret exists
docker secret ls | grep reemo_VAULT_TOKEN

# Token has a period (720h)
TOKEN=$(docker exec $(docker ps --filter name=reemo_credentialapi. -q | head -1) cat /run/secrets/reemo_VAULT_TOKEN)
docker exec -e BAO_TOKEN=$TOKEN $(docker ps --filter name=reemo_vault1. -q) bao token lookup

Check these values:

period = 720h
renewable = true
ttl close to 720h (renewed every 6h)
policies = [credentialapi-admin default]

Supercronic is running in the container¶

docker exec $(docker ps --filter name=reemo_credentialapi. -q | head -1) ps aux | grep supercronic

You should see an active supercronic process. To view renewal logs:

docker logs $(docker ps --filter name=reemo_credentialapi. -q | head -1) 2>&1 | grep renew

Manual renewal test:

docker exec $(docker ps --filter name=reemo_credentialapi. -q | head -1) /usr/local/bin/renew-vault-token.sh

Expected output:

[2026-06-08 12:34:56] [renew-vault-token] [INFO] Token renewed successfully, new TTL: 2592000s (720h)

Troubleshooting¶

Vault is sealed after a restart¶

What does this mean?

After a restart, Vault automatically returns to a “sealed” state for security reasons. It must be “unsealed” to restore access.

How to identify the issue?

A sealed Vault appears in three different ways:

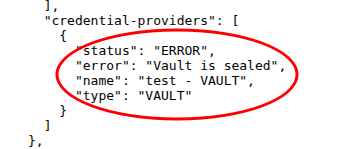

API endpoint /api/healthcheck

Go to https://your-portal/api/healthcheck. Under credential-providers, you will see:
```
"status": "ERROR",
"error": "Vault is sealed"
```

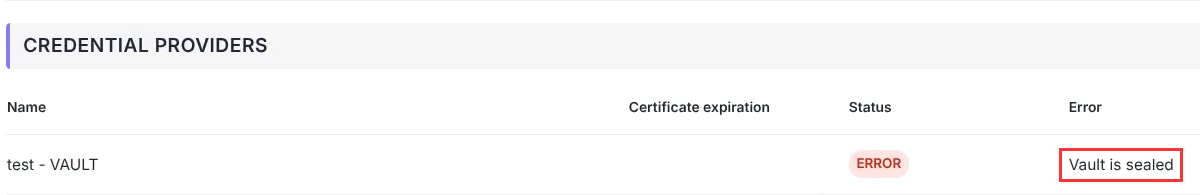

Web interface: verified_user Administration Area > build System > monitor_heart Service Status

Vault displays an Error status with the description Vault is sealed.

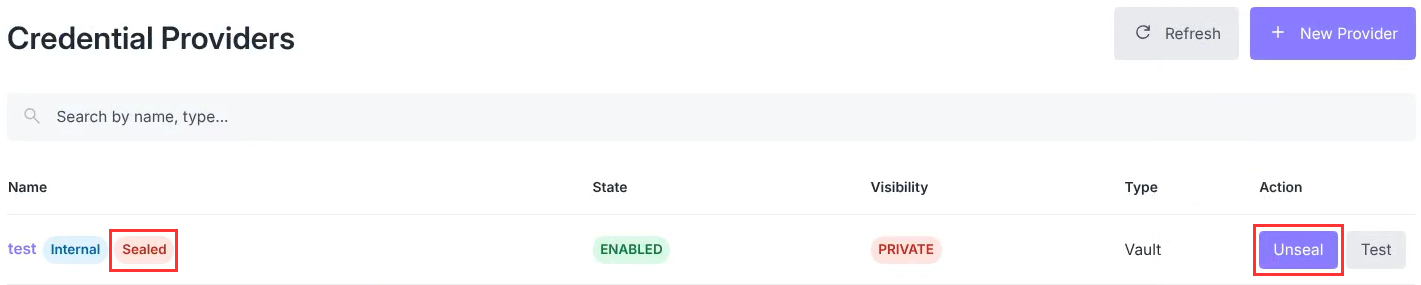

Web interface: verified_user Administration Area > key Credentials > enhanced_encryption Credential providers

The Vault card shows a red Sealed tag with the Unseal button available.

How to fix it?

Two paths depending on your context:

Situation	Action
Ansible runner available	Re-run the full playbook (automatic unsealing): ansible-playbook -i inv playbook/reemo-infra.yml --tags vault
Runner unavailable or isolated intervention	Unseal manually via the web interface: see manual procedure (you will need the `unseal_keys_hex` from the `init.json` file)

Playbook has lost init.json¶

Symptom: Vault is initialized but no init.json found at <path>.

Cause: file deleted or playbook run from a different runner without this backup.

Solution:

Retrieve init.json from your password manager

Recreate the file:

mkdir -p playbooks/secrets/reemo/vault
chmod 700 playbooks/secrets/reemo/vault
# Write the json to playbooks/secrets/reemo/vault/init.json
chmod 600 playbooks/secrets/reemo/vault/init.json

Re-encrypt with ansible-vault if needed.

Re-run the playbook:

ansible-playbook -i inv playbook/reemo-infra.yml --tags vault

CredentialAPI token TTL is decreasing¶

Symptom: TTL drops progressively (700h → 680h → …) instead of staying at ~720h.

Cause: supercronic is not renewing the token every 6h.

Diagnosis:

Check that supercronic is running:

docker exec $(docker ps --filter name=reemo_credentialapi. -q | head -1) ps aux | grep supercronic

Check the renewal logs:

docker service logs reemo_credentialapi --tail 200 | grep renew

Note

A TTL of 700h–720h is normal. A TTL < 0 is alarming.

Solution:

Restart the service:

docker service update --force reemo_credentialapi

Permission Denied¶

Symptom: Communication with Vault no longer works. Error message in the healthcheck: Permission Denied.

Cause: The token used by CredentialAPI is no longer valid.

Diagnosis:

Check the token status:

TOKEN=$(docker exec $(docker ps --filter name=reemo_credentialapi. -q | head -1) cat /run/secrets/reemo_VAULT_TOKEN)
docker exec -e BAO_TOKEN=$TOKEN $(docker ps --filter name=reemo_vault1. -q) bao token lookup

Solution:

Remove the CredentialAPI service:

docker service rm reemo_credentialapi

Remove the Vault token secret:

docker secret rm reemo_TOKEN_VAULT

Redeploy CredentialAPI via reemo-infra:

ansible-playbook -i inventory.yml playbooks/reemo-infra.yml --tags vault,credentialapi
