Bi-site Deployment with SAML Authentication

The active/active bi-site deployment distributes user load across two independent sites, each hosting a complete instance of the platform (portal, API, database).

Each site operates autonomously: there is no replication of data or sessions between sites. Access consistency and user rights are ensured by a single SAML identity provider shared between both sites.

Key Benefits

  • High Availability & Maintenance: Automatic failover of users in the event of a site outage or planned maintenance.

  • Performance: Even load distribution (sessions, APIs, and local databases) across both infrastructures.

  • Seamless Experience: Transparent authentication via SAML (users retain the same profiles and rights on either site).

How It Works

  1. The user accesses the shared public URL (PORTAL_URL).

  2. DNS routes them to one of the two sites (external balancing mechanism: round-robin, GSLB, geolocation).

  3. The target site redirects them to its own URL (PORTAL_URL_REDIRECT).

  4. The user remains on that site for the entire duration of their session (session affinity via domain cookie).

  5. Authentication is handled by the SAML provider, which grants the same rights on either site.

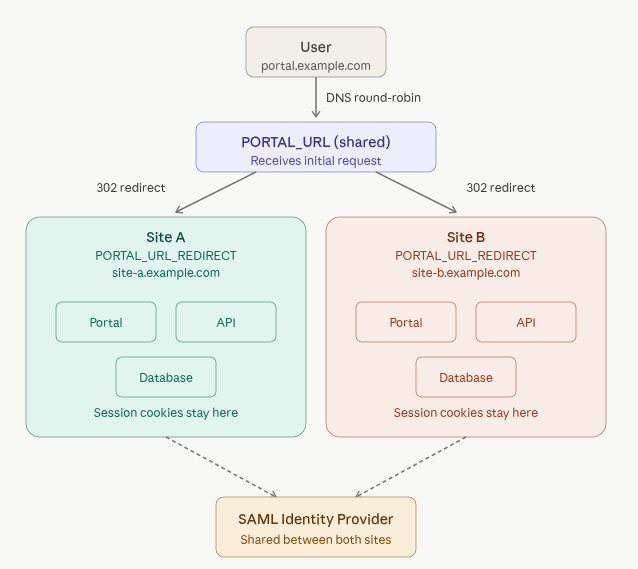

../../_static/images/infra/advanced_architecture_bi-site.png

Bi-site deployment with SAML architecture

Note

Users find the same resources and the same rights regardless of which site they are routed to, thanks to the shared SAML authentication. Only their technical session (cookie) is bound to the site on which they landed.

Prerequisites

Before modifying your inventories, make sure you have:

  • TLS Certificate: A SAN (multi-domain) or Wildcard certificate covering PORTAL_URL and both PORTAL_URL_REDIRECT domains.

  • DNS Routing:

    • PORTAL_URL must point to both sites (via GSLB or Round-Robin).

    • Each PORTAL_URL_REDIRECT must point exclusively to its respective site (A or B).

  • SAML Configuration: Both redirect URLs (Site A and B) must be declared as valid ACS (Assertion Consumer Service) endpoints at your identity provider.

Options to Configure

Two variables enable bi-site mode in your inventories:

PORTAL_URL

Must be identical on both sites. This is the global public URL entered by users (e.g. portal.example.com).

PORTAL_URL_REDIRECT

Strictly unique per site. This is the local URL specific to each infrastructure (e.g. site-a.example.com), used to lock the technical session.

Ansible Inventory Examples

Site A Inventory

File inventory-site-a.yml:

all:
  vars:
    API_LICENSE: "{{ LICENSING_KEY }}"
    REGISTRY_URL: "registry.reemo.io"
    REGISTRY_ENV: "reemoinfra"
    REGISTRY_USERNAME: "< username >"
    REGISTRY_PASSWORD: "< password >"
  children:
    infra_manager:
      vars:
        PORTAL_URL: "portal.example.com"
        PORTAL_URL_REDIRECT: "site-a.example.com"
        PROVISION_SIGNAL_IP:
          - ip: "192.168.10.66"
        INIT_PROVISION:
          provision1:
            type: "SWARM"
            ip:
              - "192.168.10.100"
      hosts:
        infra_manager1:
          ansible_host: "192.168.10.66"
    provision1:
      children:
        provision1_manager:
          hosts:
            provision1_manager1:
              ansible_host: "192.168.10.100"

Site B Inventory

File inventory-site-b.yml:

all:
  vars:
    API_LICENSE: "{{ LICENSING_KEY }}"
    REGISTRY_URL: "registry.reemo.io"
    REGISTRY_ENV: "reemoinfra"
    REGISTRY_USERNAME: "< username >"
    REGISTRY_PASSWORD: "< password >"
  children:
    infra_manager:
      vars:
        PORTAL_URL: "portal.example.com"
        PORTAL_URL_REDIRECT: "site-b.example.com"
        PROVISION_SIGNAL_IP:
          - ip: "192.168.20.66"
        INIT_PROVISION:
          provision1:
            type: "SWARM"
            ip:
              - "192.168.20.100"
      hosts:
        infra_manager1:
          ansible_host: "192.168.20.66"
    provision1:
      children:
        provision1_manager:
          hosts:
            provision1_manager1:
              ansible_host: "192.168.20.100"

Disabling Bi-site Mode

For a standard single-site deployment, leave PORTAL_URL_REDIRECT empty or leave it undefined:

all:
  children:
    infra_manager:
      vars:
        PORTAL_URL: "portal.example.com"
        PORTAL_URL_REDIRECT: ""

No redirect will be put in place.
