Configure a SonicWall Firewall

This guide explains how to configure a SonicWall firewall to allow Reemo to use an optimal connection (direct/udp) and avoid unnecessary fallback to relays.

A proper configuration reduces latency and improves the audio/video quality of sessions.

Without this configuration, Reemo can still work, but connections will fall back to relays (relay/tcp, relay/udp, websocket) with reduced performance.

Before you begin, make sure your SonicWall firewall (SonicWall NGFW, SonicOS 7.x or 8.x) is properly installed and accessible via its web administration interface.

Then log in to the interface with your administrator credentials.

Note

This configuration is provided as an example.

Screens may vary slightly depending on your SonicWall version (SonicOS).

The suggested object names (Reemo TURN, Reemo Services, etc.) are indicative: you may use your own conventions.

Step 1: Configure the TURN server

In Policies > Objects > Address Objects, add the following addresses:

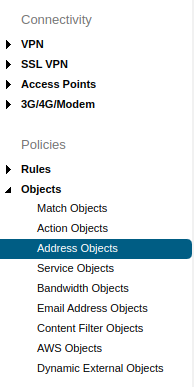

Address Objects.

• Reemo TURN:

  • Zone Assignment: WAN

  • Type: FQDN

  • FQDN Hostname: turn.cloudflare.com

Adding the TURN address.

Next, add the required services:

• Service UDP 3478 (TURN):

  • Protocol: UDP(17)

  • Port Range: 3478 - 3478

TURN UDP 3478 Service.

• Service UDP 58200 (TURN):

  • Protocol: UDP(17)

  • Port Range: 58200 - 58200

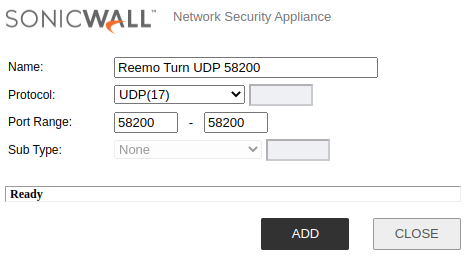

TURN UDP 58200 Service.

• Service TCP 3478 (TURN):

  • Protocol: TCP(6)

  • Port Range: 3478 - 3478

TURN TCP 3478 Service.

Create a Service Group combining these three services.

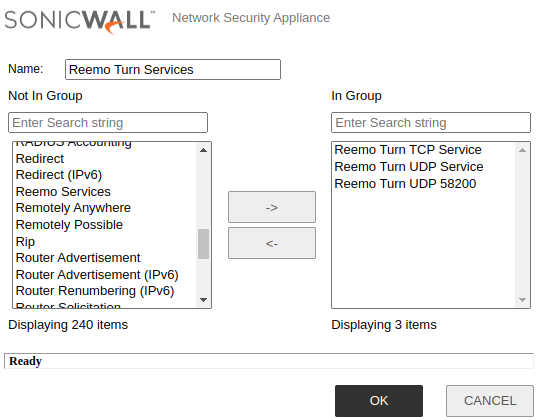

TURN Service Group.

Finally, configure the rules:

• Create an Access Rule to allow the TURN server with high priority:

  • Policy Name: Reemo TURN

  • Action: Allow

  • From: LAN

  • To: WAN

  • Source Port: Any

  • Service: Reemo TURN Services

  • Source: LAN Subnets

  • Destination: Reemo TURN

  • Users Included: All

TURN Access Rules.

• Add a NAT Policy for the TURN server:

  • Name: Reemo NAT TURN Servers

  • Original Source: LAN Subnets

  • Original Destination: Reemo TURN

  • Original Service: Reemo TURN Services

  • Enable NAT Policy: checked

  • Advanced > Disable Source Port Remap: checked

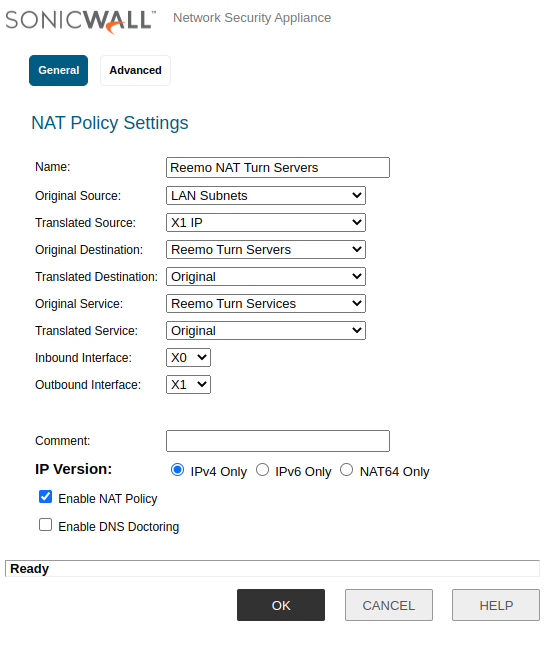

TURN NAT Policy.

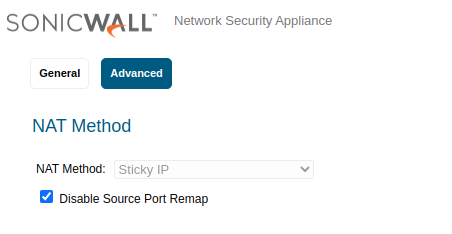

Disable Source Port Remap option.

Note

The Disable Source Port Remap option is essential to preserve the original source port and ensure optimal compatibility with Reemo.

Step 2: Configure the Reemo service

Add a Service Object for the Reemo protocol:

• Name: Reemo Services

• Protocol: UDP(17)

• Port Range: 58200 - 58400

Reemo Service Object.

Then create an Access Rule:

• Policy Name: Reemo Service

• Action: Allow

• From: LAN

• To: WAN

• Service: Reemo Services

• Source: LAN Subnets

• Destination: Any

• Users Included: All

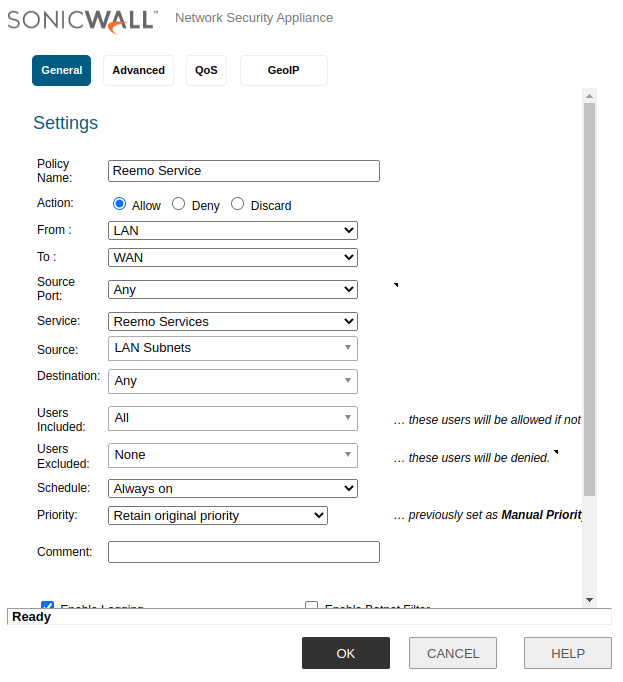

Reemo Access Rule.

Finally, create an associated NAT Policy, with high priority:

• Name: Reemo Service NAT

• Original Source: LAN Subnets

• Original Destination: Any

• Original Service: Reemo Services

• Enable NAT Policy: checked

• Advanced > Disable Source Port Remap: checked

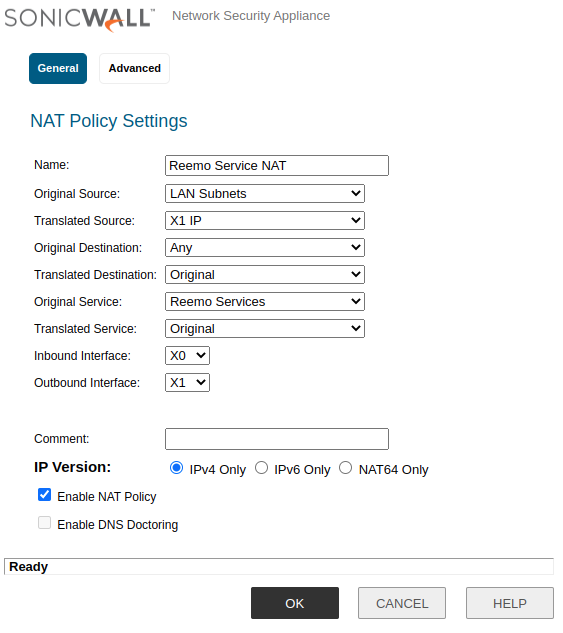

Reemo NAT Policy.

Disable Source Port Remap option.

Step 3: Extended UDP configuration for Reemo

Add a Service Object specifically for UDP:

• Name: Reemo UDP

• Protocol: UDP(17)

• Port Range: 1024 - 65535

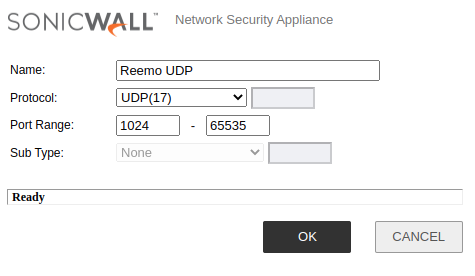

Reemo UDP Service.

Create an Access Rule:

• Policy Name: Reemo UDP

• Action: Allow

• From: LAN

• To: WAN

• Source Port: Reemo Services (58200–58400)

• Service: Reemo UDP (1024–65535)

• Source: LAN Subnets

• Destination: Any

• Users Included: All

Reemo UDP Rule.

Finally, create an associated NAT Policy:

• Name: Reemo UDP NAT

• Original Source: LAN Subnets

• Original Destination: Any

• Original Service: Reemo UDP

• Enable NAT Policy: checked

• Advanced > Disable Source Port Remap: checked

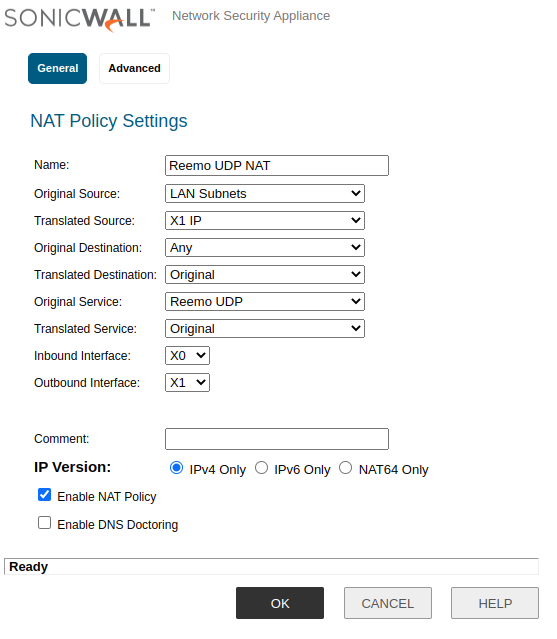

Reemo UDP NAT Policy.

Disable Source Port Remap option.

Configuration overview

Configured Rules:

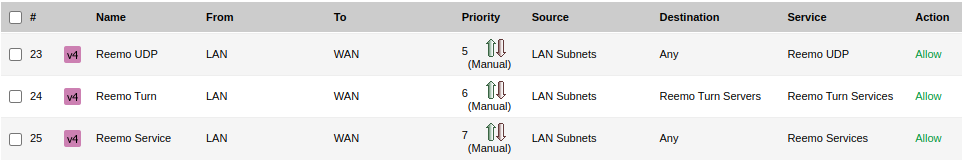

Configured Rules Overview.

Configured NAT Policies:

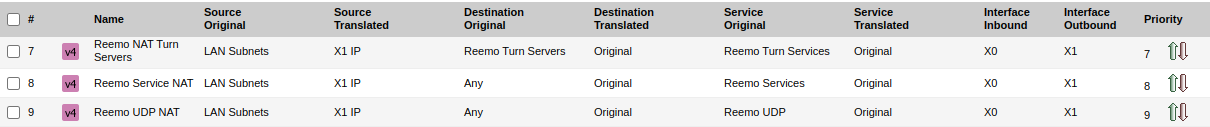

Configured NAT Policies Overview.

Summary: Ports and addresses to open

For quick reference, here is a summary table of the flows required for Reemo to work properly in direct/udp mode:

Usage	Protocol	Ports	Destination
Signal server	TCP/UDP	443	signal.reemo.io
TURN server	TCP/UDP	3478	turn.cloudflare.com
TURN server (fallback)	TCP/UDP	443	turn2.reemo.io
Reemo Protocol In	UDP	58200–58400	Browser (client device)
Reemo Protocol Out	UDP	1024–65535 (src 58200–58400)	Remote computer (Reemo Agent)
